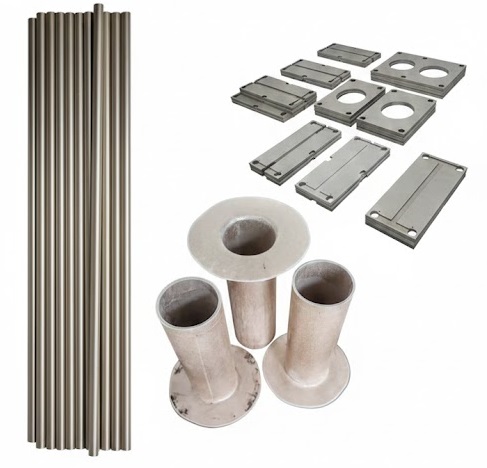

Mica Tube & Mica Parts

Core Features

• Exceptional Thermal Endurance: Stable performance under continuous operation from 500°C to 1000°C, ideal for heating elements and furnace environments.
• Superior Dielectric Integrity: High resistance to electrical breakdown, ensuring safe insulation even in ultra-compact designs.
• Mechanical Precision: Processed via high-speed CNC milling and punching, maintaining tight tolerances for complex geometries.
• Chemically Inert & Safe: 100% asbestos-free, RoHS compliant, and highly resistant to moisture and industrial oils.

Technical Specifications

• Mica Tube Dimensions: Inner diameters ranging from 3mm to 300mm; Wall thickness and length customized to blueprints.
• Custom Machined Parts: CNC-machined gaskets, washers, insulation spacers, and notched plates.
• Surface Finish: Smooth surface, free of cracks or delamination, ensuring seamless assembly.

Typical Applications

• Heating Elements: Support tubes for hair dryers, toasters, and industrial heaters.
• Motors & Transformers: Insulation sleeves, bolt washers, and armature insulation.
• Industrial Kilns: High-temperature electrode protection and structural spacers.

Technical Specifications of Mica Tubes

Hida Solution specializes in manufacturing industrial-grade mica tubes for high-heat environments. Our tubes are engineered from premium Muscovite or Phlogopite mica paper, bonded with high-temperature silicone resin to ensure superior dielectric strength and thermal stability.

To meet precise engineering requirements, we provide a wide range of customizable dimensions:

• Inner Diameter (ID): From 8mm to 300mm (High-precision tolerances available).
• Wall Thickness: Starting from 2.0mm, customizable for specific insulation needs.
• Length: Standard lengths from 10mm up to 1000mm, with custom cutting services.
• Temperature Resistance: Continuous operation from 500°C (Muscovite) up to 800°C - 1000°C (Phlogopite).

Whether you need components for heating elements, metallurgy, or high-voltage appliances, our mica tubes offer reliable performance as a non-asbestos, eco-friendly insulation solution.

Property (属性)	Unit (单位)	Muscovite Mica Tube	Phlogopite Mica Tube
Continuous Temp Resistance	°C	500 - 600	700 - 800
Peak Temp Resistance	°C	800	1000
Density	g/cm³	1.7 - 2.2	1.8 - 2.3
Dielectric Strength	kV/mm	≥ 15	≥ 12
Standard Length	mm	10 - 1000	10 - 1000

Key Features:

• High-Temperature Endurance: Maintains structural integrity under extreme heat.
• Excellent Dielectric Properties: Ideal for high-voltage motor and furnace insulation.
• Precision Machining: Custom inner/outer diameters and lengths available upon request.
