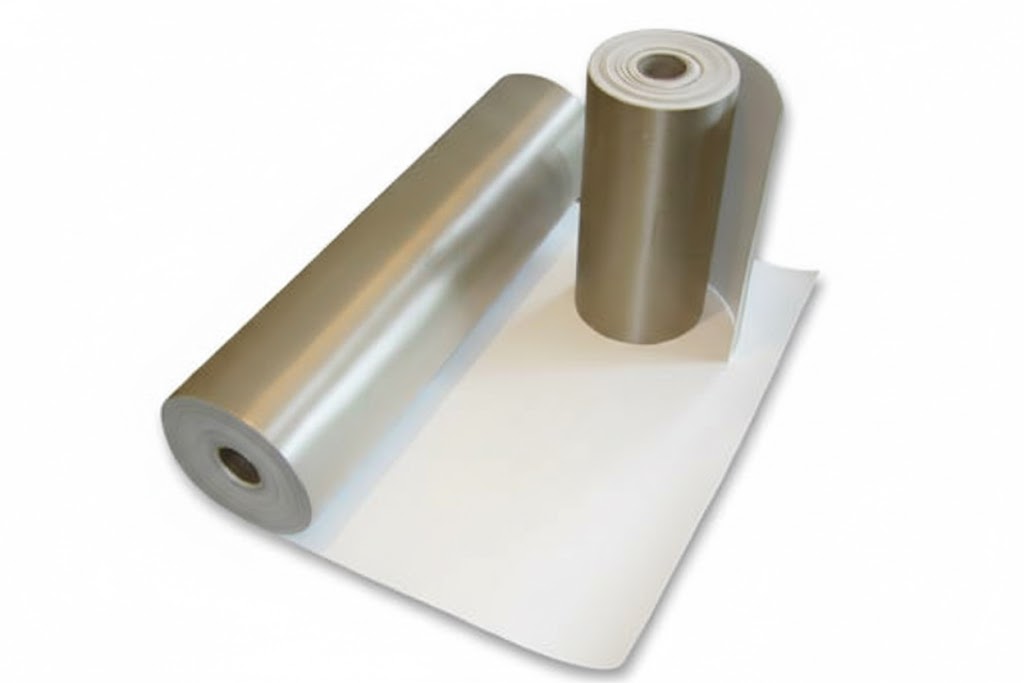

High-Performance Mica Rolls

Core Features

• Exceptional Fire Resistance: Acts as a reliable fire-proof layer in battery cells and cables, preventing thermal runaway and ensuring safety compliance.
• Thermal Insulation up to 1000°C: Effectively isolates heat in industrial kilns and induction furnaces, protecting the outer coil and structural components.
• Superior Flexibility & Tensile Strength: Reinforced with glass fiber or PE film, our mica rolls can be tightly wrapped or bent without cracking or delaminating.
• Efficient Slip Plane Performance: Provides a smooth, low-friction surface in furnace linings to accommodate the thermal expansion of crucible materials.

Technical Specifications

• Material Composition: Phlogopite (Gold) for extreme heat or Muscovite (White) for superior electrical insulation.
• Reinforcement Options: Single/Double-sided glass fiber, calcined mica, or silicone-bonded for enhanced durability.
• Custom Dimensions: Thickness ranging from 0.2mm to 0.8mm; Roll widths and lengths tailored to your specific project needs.

Typical Applications

• Induction Furnaces: Serving as a slip-plane or coil insulation to prevent electrical leakage and heat loss.
• Fire-Resistant Cables: Wrapped around conductors to maintain circuit integrity during emergency fire conditions.
• EV Battery Packs: Used as flame-retardant insulation between battery cells or modules to delay thermal spread.

Technical Specifications of Mica Rolls

Our mica rolls are flexible insulation materials made of high-quality mica paper bonded to reinforcing materials (like glass fiber or film) with high-temperature resistant resin.

Property (属性)	Unit (单位)	Muscovite Roll (白云母卷)	Phlogopite Roll (金云母卷)
Nominal Thickness	mm	0.10 - 0.50	0.10 - 0.50
Fire Resistance Temp	°C	500 - 600	800 - 1000
Mica Content	%	≥ 90	≥ 90
Dielectric Strength	kV/layer	≥ 1.5	≥ 1.2
Standard Width	mm	1000	1000
Roll Length	m	20 / 50 / 100	20 / 50 / 100

Applications:

• Furnace lining and industrial kilns insulation.
• High-temperature cable wrap for fire protection.
• Support insulation for heating elements in home appliances.
